 TFA-2 Thin Film Analyzer

Thin films are the main elements of a foam or emulsions and therefore a characterization of their main properties, i.e. the thickness and the stability, is essential. The TFA provides such measurements.

thin film analysis

TFA-2 Thin Film Analyzer

Thin films are the main elements of a foam or emulsions and therefore a characterization of their main properties, i.e. the thickness and the stability, is essential. The TFA provides such measurements. The thickness of foam films is measured by an interferometric method. The stability studies are done with the same and via a camera mounted to the used inverse microscope the process of film thinning, the appearance of black spots and black films can be recorded.

Explore Features Technical Inquiry
PAT-1M Main
PAT-1M View 2
PAT-1M View 3
PAT-1M Main
PAT-1M Main
PAT-1M Main
PAT-1M Main
Overview Information Software Applications Inquiry
Key Facts
■

Principle is based on the well-known Thin Liquid Film – Pressure Balance Technique.

■

Microscopic foam and emulsion films are obtained in a modified Scheludko-Exerowa cell, especially designed for best compatibility within the compact architecture of this instrument.

■

film thickness is measured interferometrically.

■

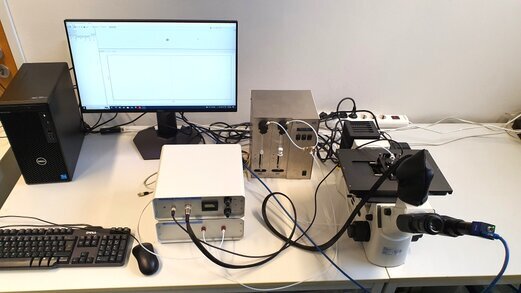

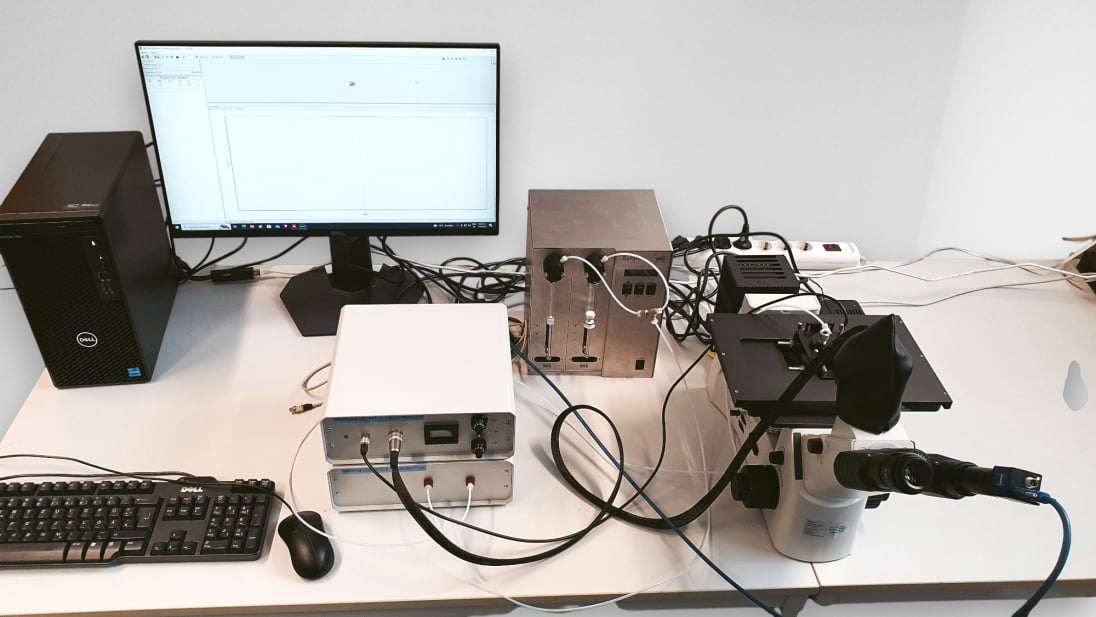

instrument is equipped with a digital camera and allows simultaneous observation of the film and measurement of its thickness, both controlled by a modern Windows software.

Hardware

Instrumental parts

  • • Inverse microscope equipped with a digital camera and
    - monochromatic light source
    - photo sensor module

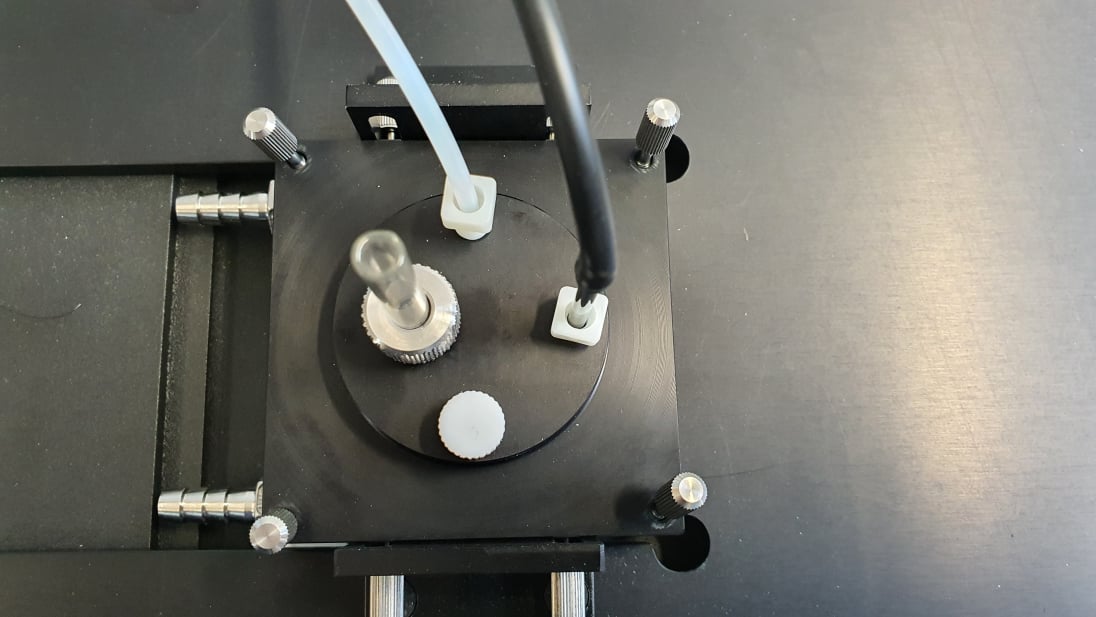

  • • Temperature controlled measuring cell in two modifications allowing:
                i) formation of a film at constant capillary pressure
                ii) application of external pressure on the film

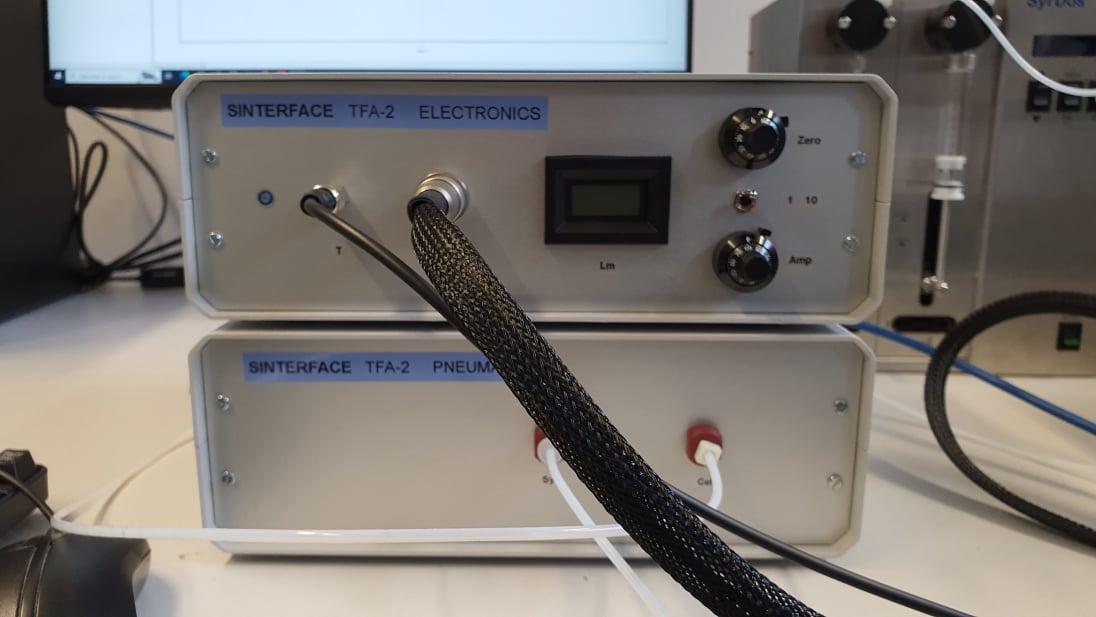

    •  Pressure control unit

Work in Progress

As this site is currently in Beta, we are continuously adding more information and detailed views. Thank you for your patience.

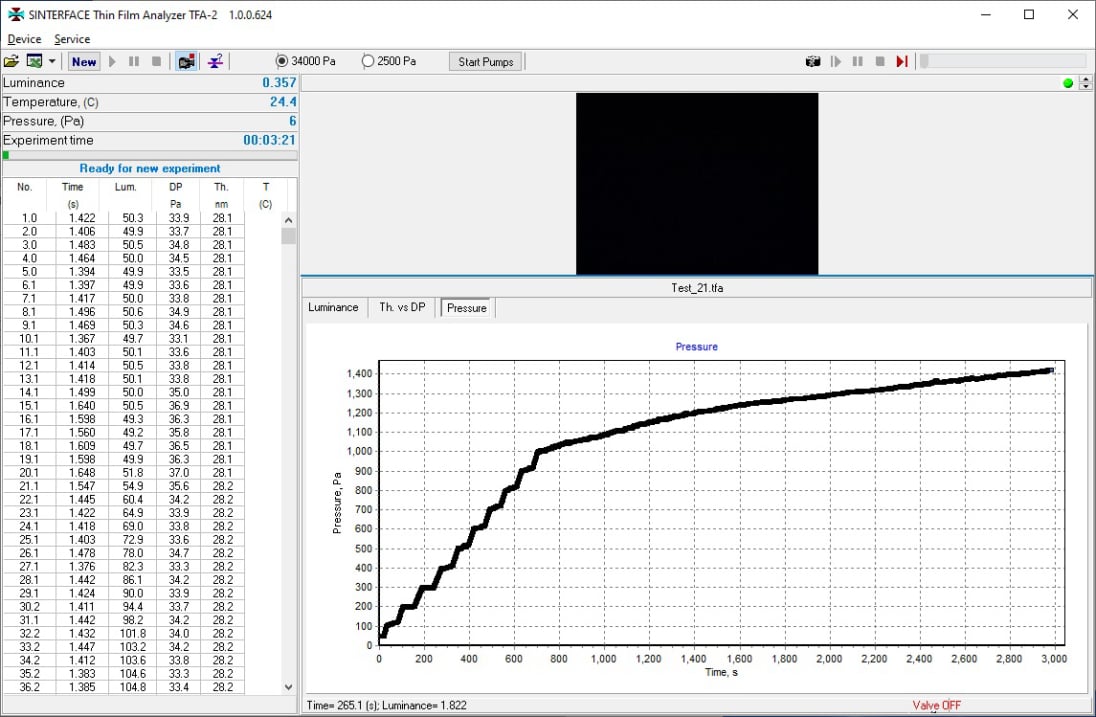

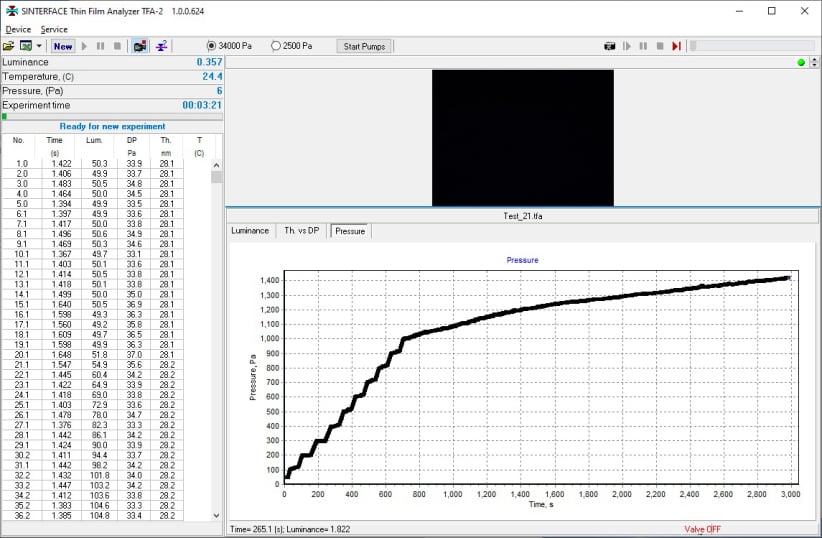

TFA-2: Software

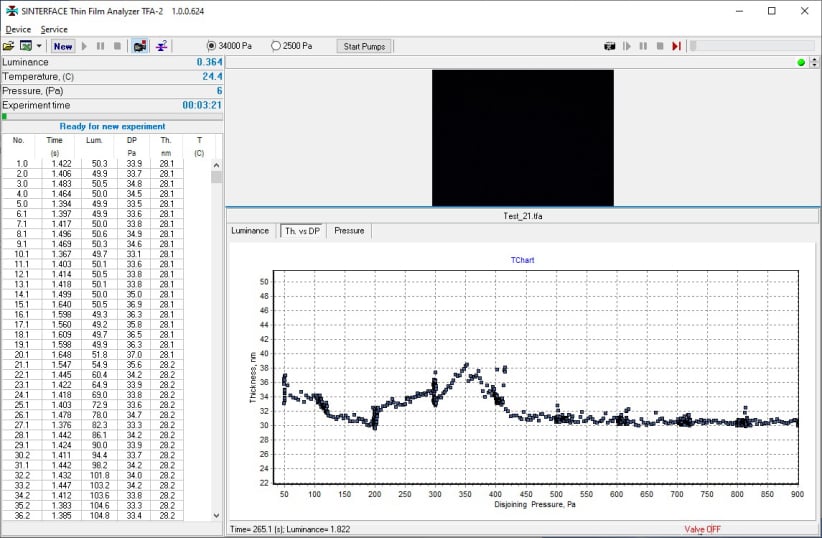

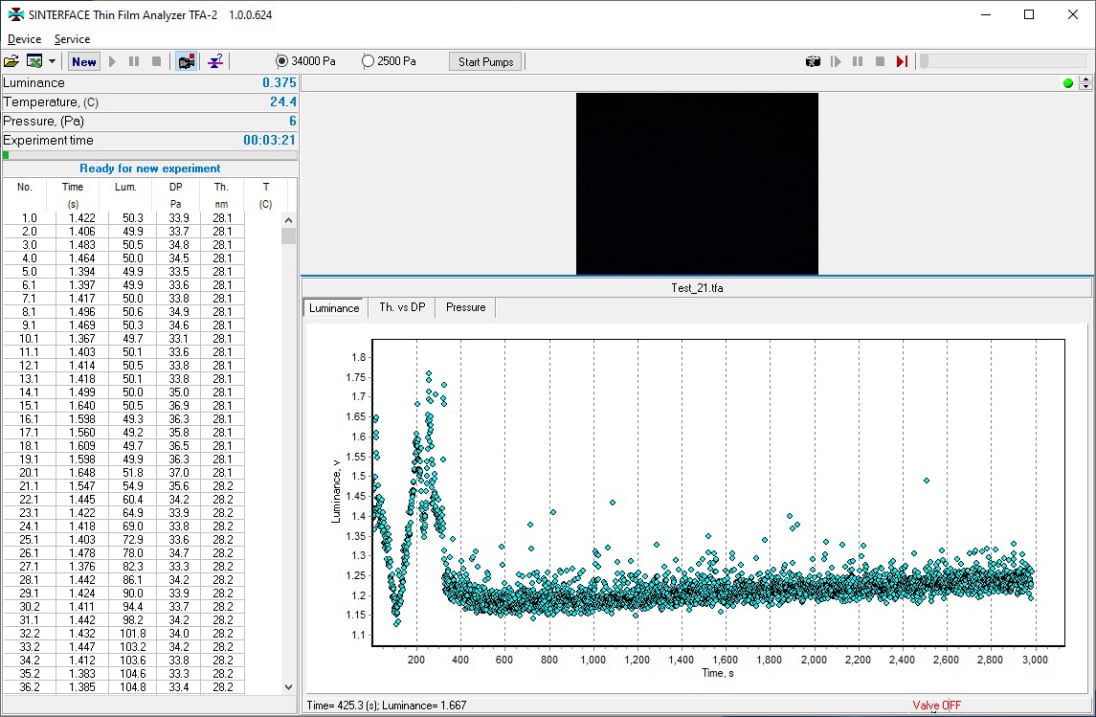

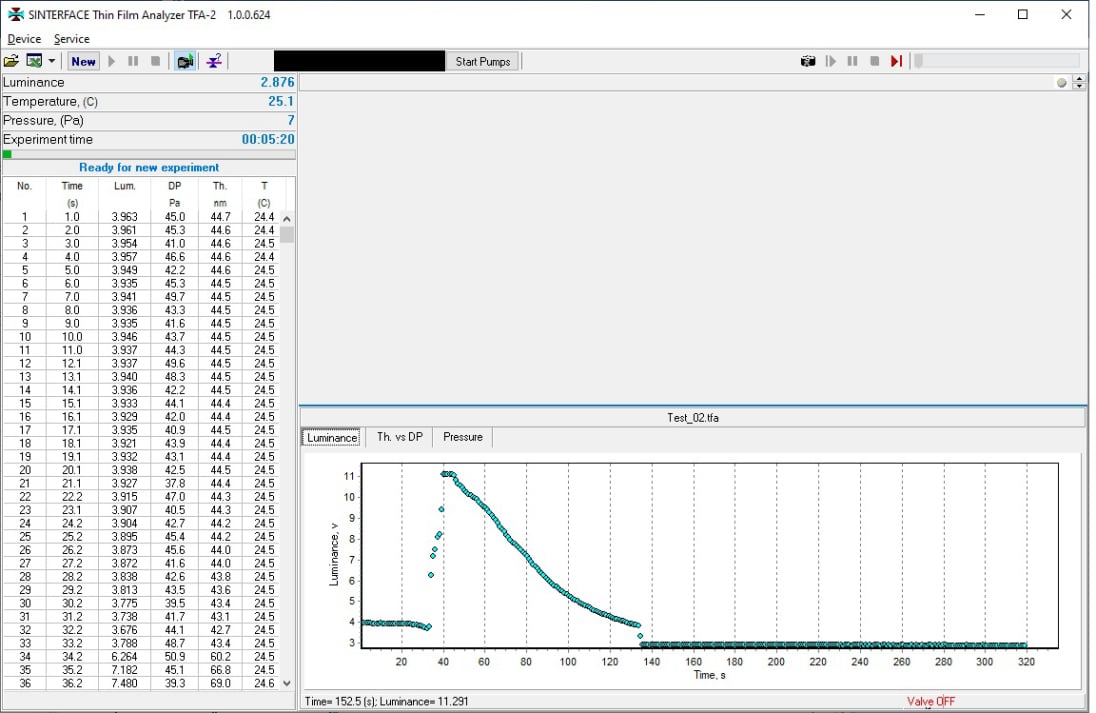

Our high-performance software provides real-time fast drop profile analysis and precise data acquisition. Designed for accuracy and intuitive workflow, it allows seamless control of all measurement parameters.

CMOS Camera
Manual Dosing

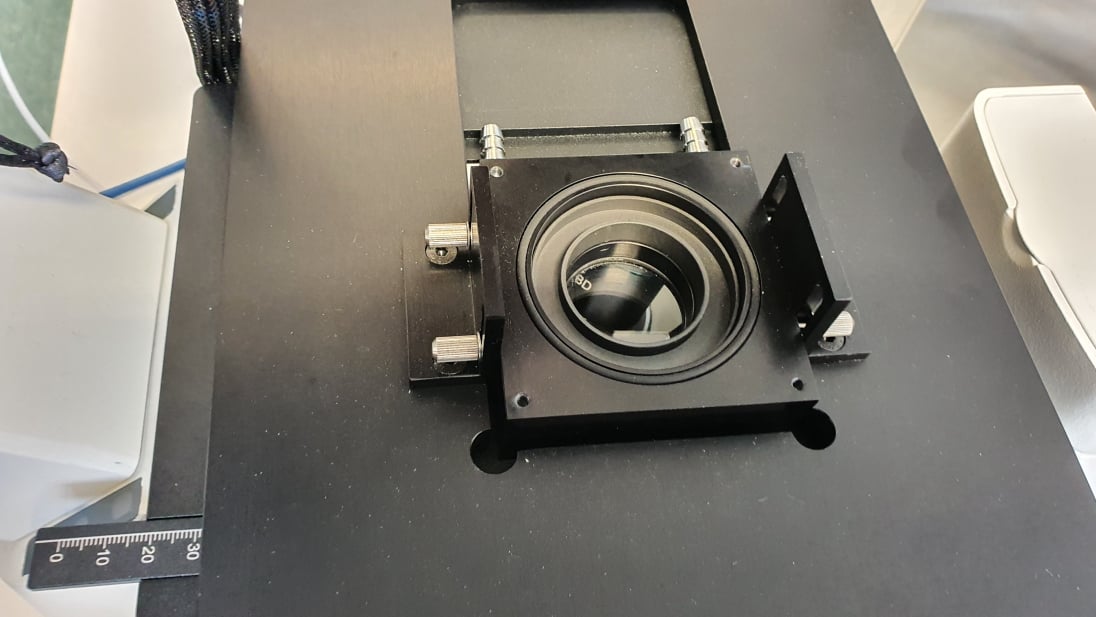

Alignment Stage

Applications & Use Cases

Case 1

Beer Foam Dynamics

Quantifying the lifetime and texture of foam heads.

Case 2

Coffee Crema Characterization

Analyzing the properties of foams for a stable espresso crema.

Case 2

Contact Us for more possible applications

If your specific use case is not listed here, please contact us for further information. Our team will be happy to discuss your enquiry with you
