Profile Analysis Tensiometers
Advanced instruments for surface and interfacial characterization.
Profile Analysis Tensiometer
PAT-2S
Next-generation interface analysis.

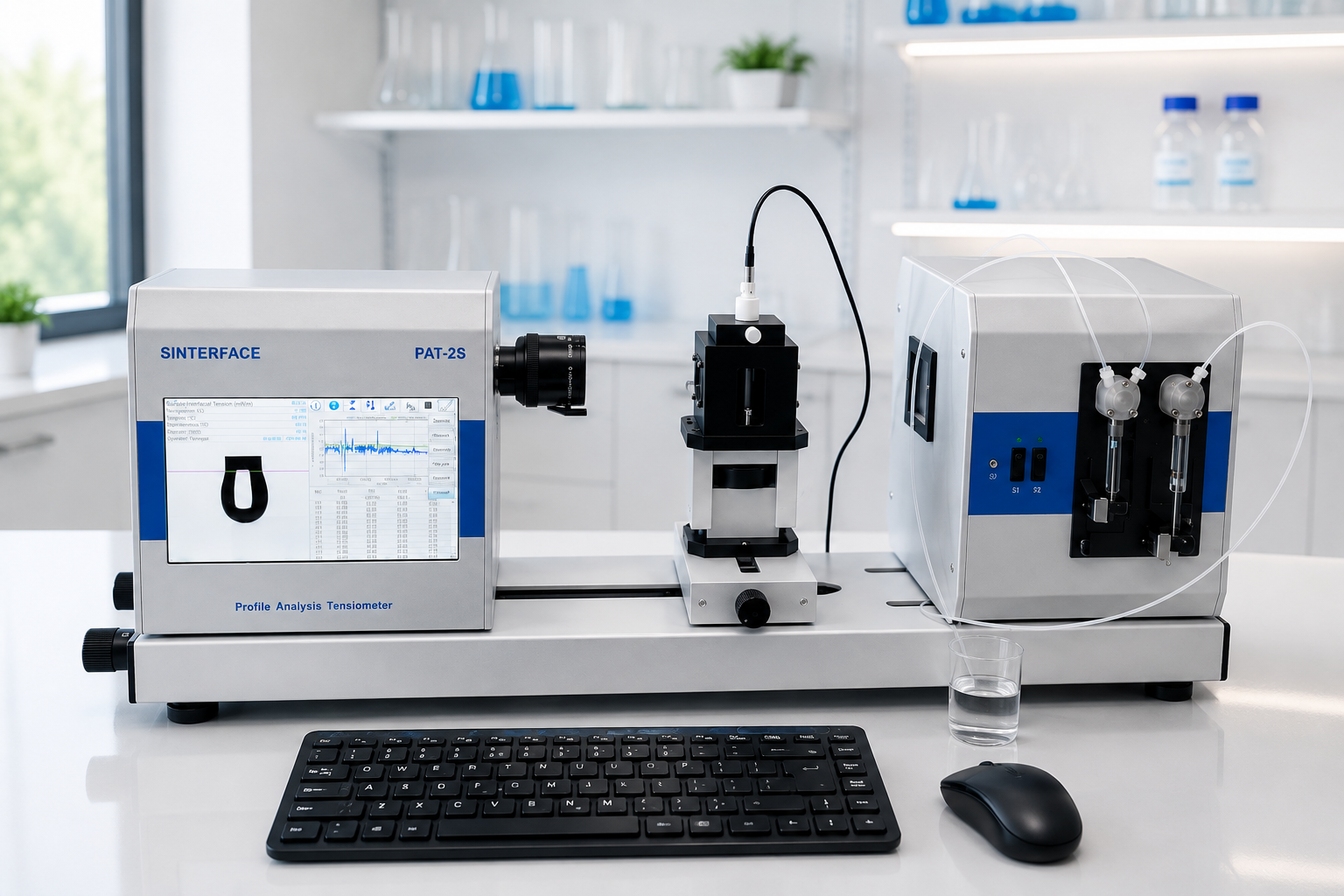

The PAT-2S combines precision optical analysis with a fully integrated embedded computer, intuitive touchscreen operation and advanced network connectivity. Designed for modern laboratories, it delivers highly reproducible characterization of surface and interfacial phenomena within one modular research platform.
7"
Integrated touch display
LAN / WLAN
Remote connectivity
3.1 MP
High-resolution CMOS camera
The PAT-2S platform
Advanced interface analysis. Fully integrated.

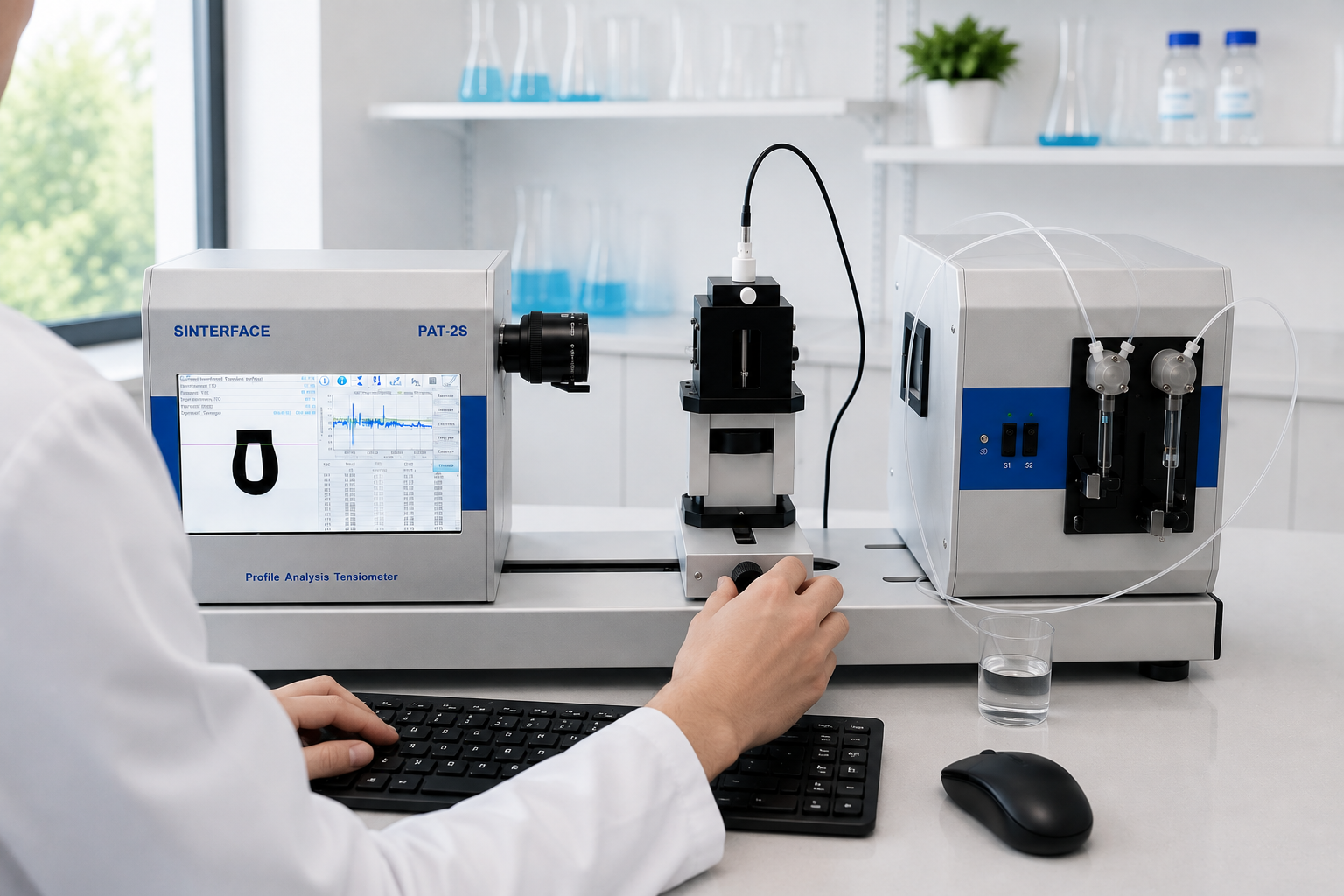

The PAT-2S combines precise optical analysis, automated dosing and advanced instrument control within a fully integrated stand-alone platform.
From surface and interfacial tension to contact angle measurements and interfacial rheology, the PAT-2S supports demanding research and industrial workflows with intuitive touchscreen operation and modern network connectivity.
Capabilities
One platform. Endless possibilities.
Discover the measurement capabilities and integrated technologies of the PAT-2S.
Analyze liquid-gas and liquid-liquid interfaces through precise drop and bubble shape evaluation. The PAT-2S supports reliable static and dynamic measurements across a broad range of experimental conditions.
Characterize wettability, adhesion and energetic surface properties using static and dynamic contact angle methods with precise optical contour analysis.
Investigate dilational elasticity, interfacial viscosity and relaxation processes through controlled drop and bubble oscillations.

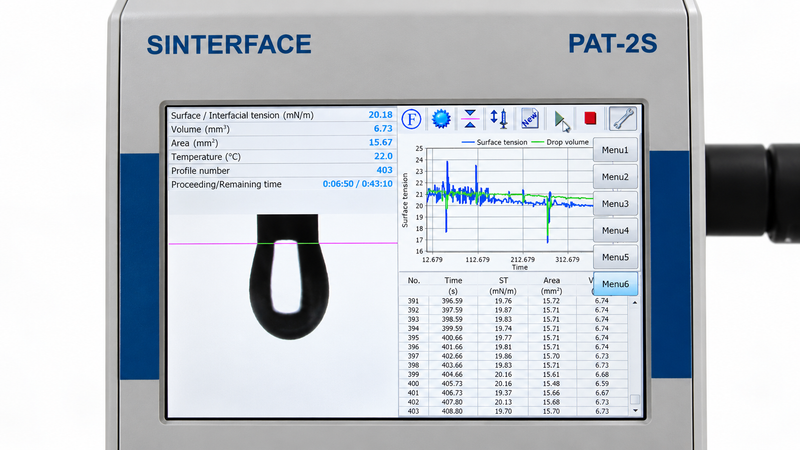

Operate the PAT-2S as a fully integrated measurement system with embedded computer, intuitive touchscreen control and direct access to measurement, evaluation and data management functions.
Control measurements directly on the instrument or remotely through the laboratory network. Integrated workflows support dosing, image acquisition, contour analysis and advanced data evaluation.
Performance
Engineered for reproducible results.
The PAT-2S combines high-resolution imaging, precise mechanics and advanced analysis software to deliver reliable measurement data for demanding interface research.
1–2000mN/m
Surface & interfacial tension
High-precision measurements with a resolution of ±0.01 mN/m.
1°–179°
Contact angle analysis
Static and dynamic contact angle measurements with an accuracy of ±0.2°.
3.1 MP
Industrial CMOS camera
2048 × 1536 px resolution with frame rates up to 1500 images per second.
Stand-alone
Integrated operation
Operate via the integrated touchscreen, keyboard and mouse, or remotely via PC and Android devices.
Values may depend on configuration, measurement mode and optional modules.
Measurement principle
From image to scientific insight.

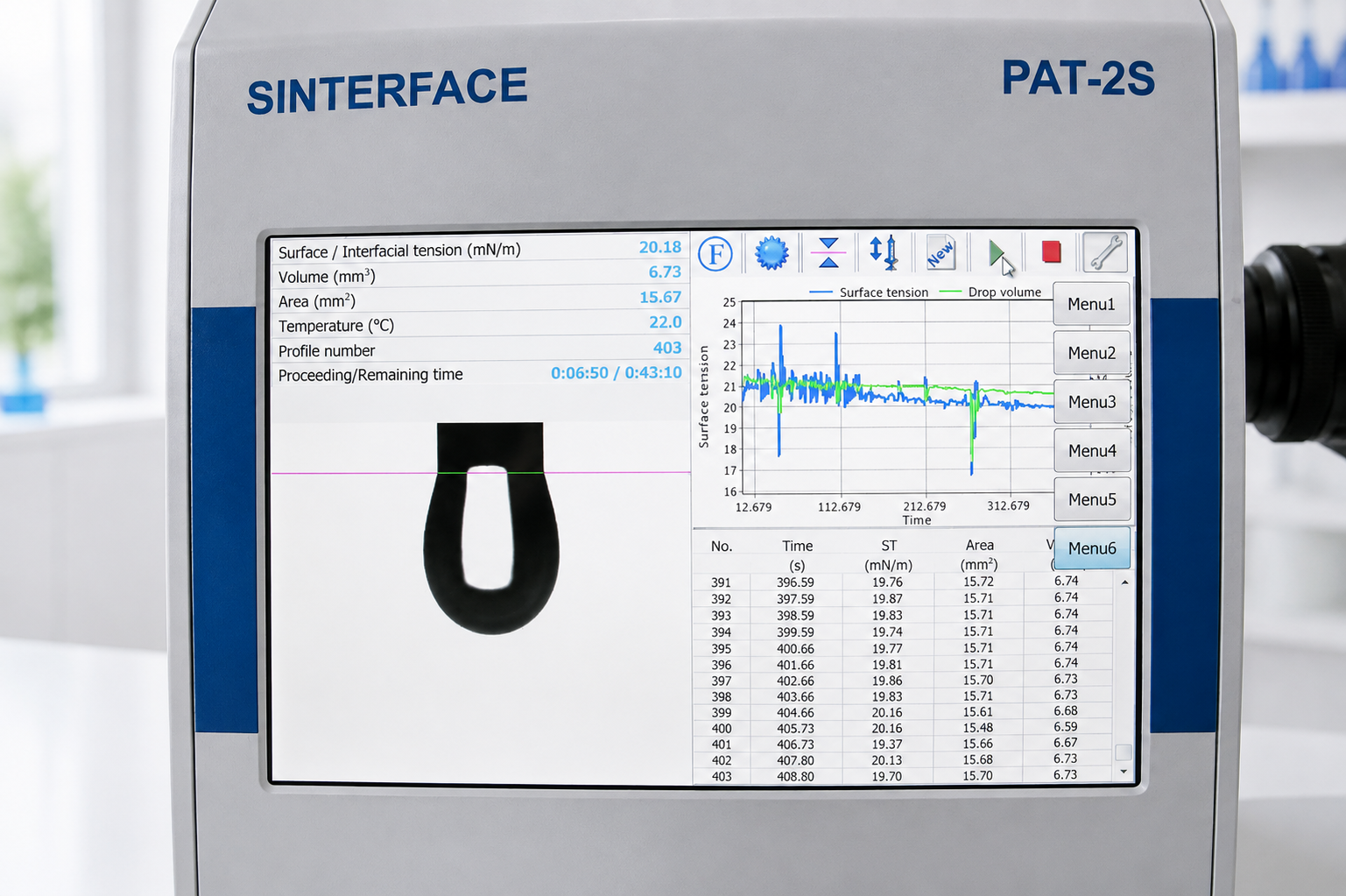

The PAT-2S captures the contour of a drop or bubble with high optical precision. Advanced image analysis and Young-Laplace evaluation transform the recorded geometry into quantitative information about surface tension, interfacial tension, contact angle and interfacial rheology. The integrated measurement platform ensures reproducible data acquisition and efficient experimental workflows.
Optical acquisition
3.1 MP CMOS camera
Evaluation
Young-Laplace analysis
Results
Quantitative interface data
Expandability
Ready for future possibilities.
The PAT-2S is designed as a flexible research platform. A growing range of accessories and future measurement modules will extend its capabilities for specialized applications.
Accessory
Standard Capillaries
A wide range of precision capillaries for surface tension, interfacial tension and specialized measurement applications.
Learn more
Accessory

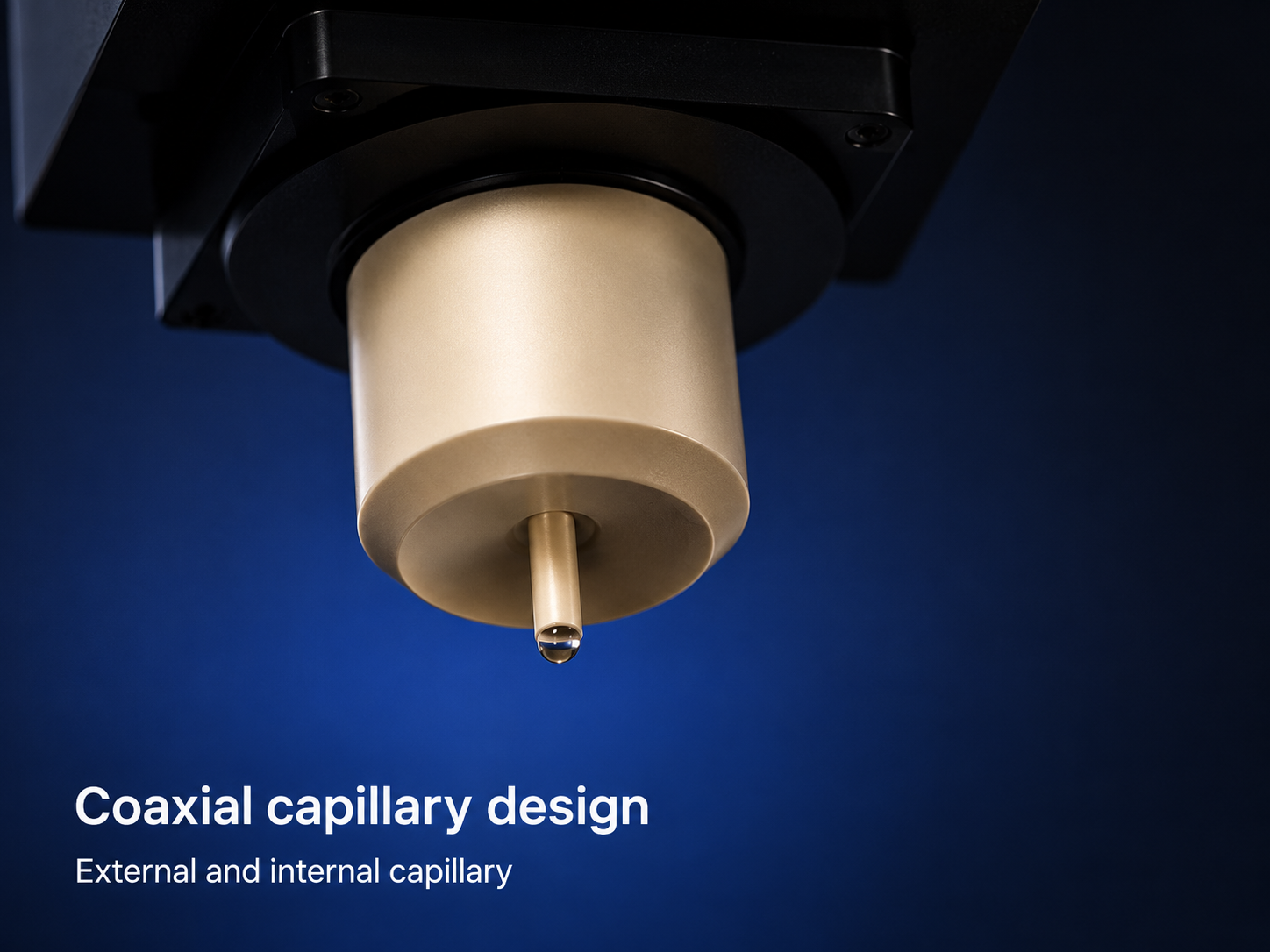

Coaxial double capillary
Specialized capillary system for advanced drop and bubble experiments.
Learn morePAT-2S Configurator
Configure a PAT-2S for your laboratory.
Select the appropriate optics, dosing systems, accessories and measurement options for your application. The configurator guides you through the available configurations and prepares a complete quotation request.
Optics and camera options
Accessories and measurement cells
Complete configuration summary
Capillaries
Precision glass capillaries
Glass Syringes
High-precision dosing
Coaxial Capillary
Specialized measurements
Modular system
Select modules, options and accessories individually.
Applications
Built for complex interfaces.
The PAT-2S supports advanced interface characterization across research, development and quality control environments.
Scientific publications
Thousands
Publications and scientific references related to interface characterization.
Referenced throughout interface science.
Explore peer-reviewed research related to profile analysis tensiometry, interfacial rheology, wetting, surface free energy and advanced interface characterization.
Verified SINTERFACE instrument use will be clearly distinguished from recommended scientific literature.
Technical information
Detailed when you need it.
Explore measurement capabilities, system configurations and technical specifications of the PAT-2S platform.
Surface and interfacial tension
Contact angle
Surface free energy
Dilational elasticity and viscosity
Drop and bubble oscillations
Surface and interfacial tension
- Measurement range
- 1–2000 mN/m
- Resolution
- ±0.01 mN/m
Contact angle
- Measurement range
- 1°–179°
- Accuracy
- ±0.2°
Oscillation frequency
- Basic version
- 0.001–0.5 Hz
- Optics
- Manual fixed or zoom objectives
- Camera
- 3.1 MP CMOS, 2048 × 1536 px
- Connection
- USB 3.0
1 GB Ethernet
3 × USB 2.0
WiFi (optional)
DisplayPort (DVI / HDMI)
Standalone or PC operation
Android remote control
Temperature-controlled measurement cell
Additional dosing systems
Coaxial double capillary
Liquid exchange cell
Piezo control unit
Special contact angle cell
High-temperature cells
- Dimensions
- 700 × 200 × 270 mm
- Weight
- 3 kg
- Power
- 24 VDC, 40 W
Specifications may vary depending on configuration, software version and optional modules.
Downloads
Documentation at a glance.
Access product information, technical documentation and supporting materials for the PAT-2S.
Additional manuals and software downloads are available through the SINTERFACE customer portal.
Visit download centerPAT-2S
